Takotsubo cardiomyopathy in a female presenting with status asthmaticus: a case report and review of literature

Abstract

Background

Takotsubo cardiomyopathy (TCM) is a non-ischemic syndrome characterized by transient acute left ventricular dysfunction as evident on transthoracic echocardiography. It can often mimic myocardial ischemia and is characterized by the absence of angiographic evidence of obstructive coronary artery disease. Reports of Takotsubo syndrome in elderly with asthma exacerbations have been noted.

Case presentation

We describe a case of TCM in a 68-year-old female who presented with acute shortness of breath secondary to status asthmaticus. Her electrocardiogram showed ST segment elevations in multiple coronary artery distributions and mildly elevated troponin levels. Coronary angiography showed no significant stenosis of the coronary arteries with left ventriculography that showed systolic apical ballooning with a 10% ejection fraction, consistent with TCM.

Conclusions

Takotsubo syndrome should be considered in the differential diagnosis of patients presenting with status asthmaticus and elevated troponin levels on admission. Patients should be asked about the use of beta agonist prior to admission. A thorough literature review including a summary of 11 previously published case reports of TCM with acute asthma exacerbations has been presented.

Background

Takotsubo cardiomyopathy (TCM) is an acute cardiac dysfunction that typically represents hypokinesis of the apical segment of the left ventricle (LV) beyond a single coronary artery territory [1]. It presents with typical features of myocardial ischemia including central tightening chest pain and shortness of breath, electrocardiographic changes which mimic coronary artery disease, and minimal release of myocardial enzymes in the absence of angiographically significant coronary artery stenosis. The condition is relatively rare and is found in about 1–2% of all patients with suspected acute coronary syndromes (ACS) [2]. It is commonly seen among post-menopausal women [3]. The underlying pathophysiology of this acute cardiac entity remains largely unclear, but is often associated with physical or emotional stress, hence the term “stress cardiomyopathy” [4]. Catecholamine surge-induced cardiomyocyte injury in response to emotional or physical stress has been postulated as its primary pathophysiology [5]. The list of potential triggers associated with TCM continues to expand as the disease gains increasing recognition among internists and cardiologists. The condition is usually benign, and reversible, with nearly full recovery expected in around 6–8 weeks [6]. Rarely, it may be complicated by life-threatening sequelae including acute cardiogenic shock, lethal ventricular arrhythmias, or ventricular wall rupture [7]. In this report, we present a case of TCM secondary to asthma exacerbation along with a review of the published case reports (Table 1) [8,9,10,11,12,13,14,15,16,17,18]. This report emphasizes the importance of the awareness of the potential association between status asthmaticus and TCM.

Table 1 Literature review of cases of Takotsubo cardiomyopathy in patients with asthma exacerbation

Case presentation

A 68-year-old female presented to the Emergency Department with chief complaint of shortness of breath, wheezing, and cough for past 3 days. Prior to the hospital visit, she was seen by her primary care provider who prescribed her clarithromycin and Medrol dose pack but she had no significant benefit. She denied any episodes of chest pain or fever.

Her medical history was significant for asthma since childhood, hypertension, hypothyroidism, and left lower extremity deep venous thrombosis 15 years back. The patient reported an eight-pack-year smoking history. There was no personal history of coronary artery disease, prior myocardial infarction, or hyperlipidemia. She had no history of unusual emotional stress prior to admission.

On examination, patient was afebrile with temperature of 36.3 °C, heart rate of 116 beats/minute, blood pressure of 102/75 mm Hg, and respiratory rate of 22 breaths/minute. Bilateral wheezes were heard on chest auscultation. In the emergency room, patient was placed on bilevel positive airway pressure (BiPAP) to maintain oxygen saturation. Appropriate management for asthma exacerbation was started and patient received methylprednisolone 125 mg IV one time along with repeated albuterol nebulizers, Ipratropium–albuterol inhalers, and magnesium sulfate. Initial Chest radiograph revealed mild flattening of diaphragm without any acute process, cardiomegaly or effusions. Electrocardiogram (EKG) on admission showed mild ST elevation in the inferior and anterolateral leads as well as a prolonged QT interval (0.486 s) (Fig. 1A). Initial troponins at the time of admission were normal (0.023 ng/ml). Her pro-BNP was 103 pg/ml. Her erythrocyte sedimentation rate was 7 mm/h and her C-reactive protein was 1.34 mg/l.

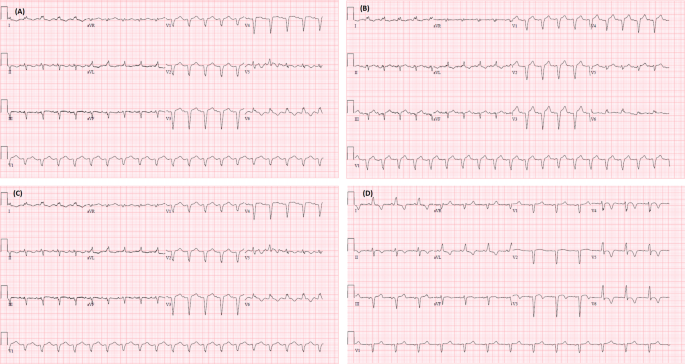

Fig. 1
figure 1

EKG changes during the course of admission. A EKG on admission showing ST elevation in inferior and anterolateral leads. B EKG 1.5 h later showing same ST elevation in the inferior and anteriolateral leads, and left axis deviation. C EKG 18 h later showing new left bundle branch block. D EKG 6 days after admission showing resolution of Left Bundle Branch Block

Patient was transferred to critical care unit for further management, on BiPAP and was treated for acute asthma exacerbation. A repeat EKG obtained 1.5 hours later showed Left axis deviation but no significant changes from the initial EKG (Fig. 1B). Troponins were trended overnight and continued to rise but were moderately elevated (3.97 ng/ml and 4.65 ng/ml). An EKG the following morning 18 hours later showed a new onset Left bundle branch block (LBBB) (Fig. 1C). She came off the BiPAP and was transitioned to Nasal cannula, was feeling improved the morning of the Day 2. That evening, she started to deteriorate again requiring BiPAP. An echocardiogram (ECHO) was obtained at this time, which revealed an Ejection fraction (EF) of 24%, with severely depressed LV function but normal wall thickness and shape (Additional file 1: Fig. S1). A prior ECHO done eight months back showed an EF of 65%, without any regional wall motion abnormalities. Due to her worsening respiratory status, new EKG changes from that morning and increasing troponin, she was taken to the Cardiac Catherization lab urgently. Cardiac catheterization revealed normal coronary angiogram, an EF of 10%, and Left Ventricular End Diastolic Pressure of 35 mm Hg. A pro-BNP resulted that time was 20,242 pg/ml. Left ventriculogram showed akinetic apex, anterior and inferior walls with mild dilation of the left ventricle supporting the diagnosis of TCM (Fig. 2). An intra-aortic balloon pump (IABP) was placed for circulatory support, however vasopressors and inotropes were not required.

Fig. 2
figure 2

Left ventricular angiography in A diastole and B systole demonstrating akinesis of anterior wall, apex, and inferior wall in setting of non-obstructive coronary artery disease

The patient was started on carvedilol and enalapril and she was monitored in the critical care unit until the IABP was removed. The rest of the hospital course was unremarkable on the medicine floors and she was discharged after being weaned off supplemental oxygen. She opted out of anticoagulation. Follow-up ECHO 9 weeks later revealed normal left ventricular function with EF of 59%.

Discussion

We presented a case of TCM in a 68-year-old female presenting with asthma exacerbation. Within 24 hours of presentation, she developed a new onset LBBB on EKG and had mild troponin elevation. Her respiratory status improved the morning of the day 2, but then deteriorated again the night of day 2. An ECHO showing low EF, increasing troponin, continuing ST changes, and worsening respiratory status prompted an emergent cardiac catheterization for high-risk NSTEMI. The cardiac catheterization revealed findings that were highly suspicious of Takotsubo syndrome.

Currently, the diagnostic criteria adopted by the Heart Failure Association and European Society of Cardiology are the most widely used in the diagnosis of TCM. In addition to the above definition, criteria includes an absence of atherosclerotic disease that would explain the presentation, new and reversible EKG changes (ST elevation/depression, LBBB, and/or QTc prolongation), elevated Brain natriuretic peptide (BNP) or natriuretic-pro-BNP, slightly elevated troponins and recovery of the ventricular function on imaging at 3 to 6 months. The International Takotsubo Diagnostic Criteria has been recently proposed and is similar to the criteria put forth by the Heart Failure Association and European Society of Cardiology with the exception that infectious myocarditis must be ruled out [19]. Myocarditis requires a biopsy for a definitive diagnosis; however a biopsy for this purpose is not commonly done in our facility. Clinically, myocarditis presents with chest pain, which our patient did not report. Other findings suggestive of myocarditis include global dilation on ECHO, elevated inflammatory markers (ESR, C-reactive protein, etc.), and non-specific changes on EKG, which were not seen in our patient. A LBBB is associated with a worse prognosis in patients diagnosed with myocarditis.

Given its similarity in presentation to ACS, it is imperative to differentiate TCM from ACS. There are certain findings on EKG and imaging that can help differentiate TCM from ACS, although are not definitive. One finding on EKG that is 100% specific for TCM is ST elevation in AVR combined with ST elevation in more than 2–3 anteroseptal leads (V1-V6). This finding has been reported to have a positive predictive value of 100%, a negative predictive value of 52%, and a sensitivity of 12% [20]. Another finding that may suggest TCM as opposed to ACS is the differences in elevation of cardiac troponins. In TCM, troponins are typically elevated less than 10 ng/ml. BNP and natriuretic-BNP are typically much higher in TCM as compared to ACS. An ECHO may be able to demonstrate the classic apical ballooning form, however, it cannot be differentiated from ischemia involving the apex. Cardiac magnetic resonance imaging has also been used to differentiate TCM from ACS [21]. Delayed gadolinium enhancement, which helps to demonstrate myocardial edema, tends to match the area of akinesis in TCM during the acute phase of illness while it is more localized to the involved coronary artery in ACS.

The pathophysiology of asthma-induced TCM is not well understood. It is hypothesized that the asthma attack itself leads to excessive production of catecholamines and Neuropeptide Y, and it may trigger apical cardio-depression precipitating TCM [22]. However, it is not clear if elevated levels of these substrates are a reflection of the pathophysiology or if this is the cause. However, direct exposure of myocardium to catecholamine is deemed to be highly toxic and may cause cellular damage, altered cellular metabolism, and contraction band necrosis [23, 24]. Further, there is evidence to suggest that selective beta-2-agonists may induce apoptosis of cardiac myocytes due to production of reactive oxygen species [25, 26]. Other possible mechanisms proposed include the possibility of increased beta receptors in certain areas of the myocardium (9), changes in G-protein signaling from Gs (stimulatory) to Gi (inhibitory) leading to negative inotropic response (11), and in the event of increasing beta agonist use, the loss of selectivity of these drugs to lung tissue leading to vascular spasm in the myocardium (13).

The main complication of TCM is cardiogenic shock resulting in circulatory failure. The management is supportive, with severe cases requiring Mechanical Circulatory Support with Bridge to Recovery. It is important to determine if a left ventricular outflow tract obstruction (LVOTO) is present (as determined by ECHO). In the case of LVOTO, the obstruction must be relieved prior to treating the heart failure. Given risk of arrhythmias, continuous EKG monitoring is recommended for at least 48 h.

We performed a review of literature and found 11 other cases that describe asthma exacerbation as a trigger for TCM (Table 1). Six out of the 11 cases we reviewed were post-menopausal females. None of the cases, including ours, exhibited the specific EKG finding for this syndrome. However, there is only one other case to our knowledge that presented with a new LBBB [13]. All cases were treated with a loading dose of steroids and inhaled bronchodilators for management of asthma exacerbation. In our study, additionally, repeated doses of magnesium sulfate were used for the management of status asthmaticus. Other notable treatments used in prior reports included combinations of epinephrine/ketamine and aminophylline. Our case presented with similar troponin elevations, ECHO findings, and cardiac catheterization findings as seen in previous reports.

We suspect that our case of TCM was induced by the physiological stress of an asthma exacerbation or possibly by the administration of beta agonistic drugs. However, the former seems more likely as our patient had EKG changes (ST Elevations in the inferior and anterior–lateral leads) on admission that were not present on a prior EKG and she did not report any chronic and excessive use of inhaled beta agonists. We came to the conclusion that her asthma exacerbation lead to the development of TCM immediately on or prior to admission. The new LBBB on day 2 prompted the cardiac catheterization. The ST elevations and LBBB resolved completely after the catheterization.

Conclusions

This case highlights the importance of maintaining a high suspicion for TCM in post-menopausal women with asthma exacerbations, who have persistent symptoms despite treatment with bronchodilators and steroids, even in the absence of an emotional trigger.

Availability of data and materials

Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study.

Abbreviations

TCM:

Takotsubo cardiomyopathy

LV:

Left ventricle

ACS:

Acute coronary syndromes

EKG:

Electrocardiogram

LBBB:

Left bundle branch block

ECHO:

Echocardiogram

EF:

Ejection fraction

IABP:

Intra-aortic balloon pump

BNP:

Brain natriuretic peptide

LVOTO:

Left ventricular outflow tract obstruction

RBBB:

Right bundle branch block

WMA:

Wall motion abnormalities

TWI:

T-wave inversion

References

  1. Tsuchihashi K et al (2001) Transient left ventricular apical ballooning without coronary artery stenosis: a novel heart syndrome mimicking acute myocardial infarction. J Am Coll Cardiol 38(1):11–18

    Article  CAS  Google Scholar

  2. Akashi YJ, Nef HM, Lyon AR (2015) Epidemiology and pathophysiology of Takotsubo syndrome. Nat Rev Cardiol 12(7):387

    Article  Google Scholar

  3. Strunk B et al (2006) High incidence of focal left ventricular wall motion abnormalities and normal coronary arteries in patients with myocardial infarctions presenting to a community hospital. J Invas Cardiol 18(8):376

    Google Scholar

  4. Park J-H et al (2005) Left ventricular apical ballooning due to severe physical stress in patients admitted to the medical ICU. Chest 128(1):296–302

    Article  Google Scholar

  5. Wittstein IS et al (2005) Neurohumoral features of myocardial stunning due to sudden emotional stress. N Engl J Med 352(6):539–548

    Article  CAS  Google Scholar

  6. Lyon AR et al (2016) Current state of knowledge on Takotsubo syndrome: a Position Statement from the Taskforce on Takotsubo Syndrome of the Heart Failure Association of the European Society of Cardiology. Eur J Heart Fail 18(1):8–27

    Article  Google Scholar

  7. de Chazal HM et al (2018) Stress cardiomyopathy diagnosis and treatment: JACC state-of-the-art review. J Am Coll Cardiol 72(16):1955–1971

    Article  Google Scholar

  8. Kansara T et al (2020) Rare association of Takotsubo cardiomyopathy with right bundle branch block in the dual setting of asthma exacerbation and psychiatric illness. Am J Case Rep 21:e920461–e920471

    Article  Google Scholar

  9. Kotsiou OS et al (2017) Takotsubo cardiomyopathy: a known unknown foe of asthma. J Asthma 54(8):880–886

    Article  Google Scholar

  10. Ozturk C et al (2016) Tako-tsubo Cardiomyopathy following Bronchial Asthma Attack. Int Cardiovasc Forum J

  11. Khwaja YH, Tai JM (2016) Takotsubo cardiomyopathy with use of salbutamol nebulisation and aminophylline infusion in a patient with acute asthma exacerbation. Case Rep 2016:bcr2016217364

    Google Scholar

  12. Saito N et al (2016) Asthmatic attack complicated with takotsubo cardiomyopathy after frequent inhalation of inhaled corticosteroids/long-acting beta2-adrenoceptor agonists. Intern Med 55(12):1615–1620

    Article  Google Scholar

  13. Marmoush FY et al (2015) Takotsubo cardiomyopathy: a new perspective in Asthma. Case Rep Cardiol 2015

  14. Salahuddin FF et al (2013) A case of apical ballooning syndrome in a male with status asthmaticus; highlighting the role of B2 agonists in the pathophysiology of a reversible cardiomyopathy. J Commun Hospital Intern Med Persp 3(2):20530

    Google Scholar

  15. Pontillo D, Patruno N, Stefanoni R (2011) The tako–tsubo syndrome and bronchial asthma: the chicken or the egg dilemma. J Cardiovasc Med 12(2):149

    Article  Google Scholar

  16. Rennyson SL et al (2010) Recurrent, severe, and rapidly reversible apical ballooning syndrome in status asthmaticus. Heart Lung 39(6):537–539

    Article  Google Scholar

  17. Stanojevic DA et al (2010) Case of reverse takotsubo cardiomyopathy in status asthmaticus. South Med J 103(9):964–964

    Article  Google Scholar

  18. Osuorji I et al (2009) Acute stress cardiomyopathy following treatment of status asthmaticus. South Med J 102(3):301–303

    Article  Google Scholar

  19. Ghadri J-R et al (2018) International expert consensus document on Takotsubo syndrome (part I): clinical characteristics, diagnostic criteria, and pathophysiology. Eur Heart J 39(22):2032–2046

    Article  Google Scholar

  20. Medina de Chazal H et al (2018) Stress cardiomyopathy diagnosis and treatment. JACC state-of-the-art review. J Am College Cardiol 72(16):1955–1971

    Article  Google Scholar

  21. Kohan AA et al (2014) Usefulness of MRI in takotsubo cardiomyopathy: a review of the literature. Cardiovasc Diagn Ther 4(2):138

    PubMed  PubMed Central  Google Scholar

  22. Paur H et al (2012) High Levels of circulating epinephrine trigger apical cardiodepression in a β2-adrenergic receptor/Gi–dependent manner: a new model of takotsubo cardiomyopathy. Circulation 126(6):697–706

    Article  CAS  Google Scholar

  23. Fineschi V et al (2005) Myocardial disarray: An architectural disorganization linked with adrenergic stress? Int J Cardiol 99(2):277–282

    Article  CAS  Google Scholar

  24. Nef HM et al (2007) Tako-Tsubo cardiomyopathy: intraindividual structural analysis in the acute phase and after functional recovery. Eur Heart J 28(20):2456–2464

    Article  Google Scholar

  25. Vittone L, Said M, Mattiazzi A (2006) β 2-Adrenergic stimulation is involved in the contractile dysfunction of the stunned heart. Naunyn Schmiedebergs Arch Pharmacol 373(1):60–70

    Article  CAS  Google Scholar

  26. Cazzola M, Matera MG, Donner CF (2005) Inhaled beta2-adrenoceptor agonists: cardiovascular safety in patients with obstructive lung disease. Drugs 65(12):1595–1610

    Article  CAS  Google Scholar

Download references

Acknowledgements

None.

Funding

None.

Author information

Authors and Affiliations

Authors

Contributions

LC and AK were involved in study design, data collection, and original draft preparation. WA contributed to manuscript reviewing and editing. All authors have read and approved the manuscript.

Corresponding author

Correspondence to Lindsey C. Clark.

Ethics declarations

Ethics approval and consent to participate

Written consent for participation was obtained from the patient. No ethics approval was required as per policy.

Consent for publication

Informed written consent was obtained from the patient for their anonymized information to be published in this paper.

Competing interests

All authors declare that there is no competing interest.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Fig. S1

. Echocardiogram with demonstration of hypokinesis of entire septal area, apex, and lateral areas. On the base contracts (arrow).
