Cystic cardiac myxoma: a rare variant of cardiac myxoma in a woman with acute stroke
The Egyptian Heart Journal volume 76, Article number: 139 (2024)
Abstract
Background
Cardiac myxomas are the most common primary benign tumors of the heart usually presenting as an oval mass attached to the interatrial septum. Mild heterogenous enhancement is typically seen upon contrast administration. Myxomas are benign, however can present with embolic episodes necessitating prompt diagnosis and treatment.
Case presentation

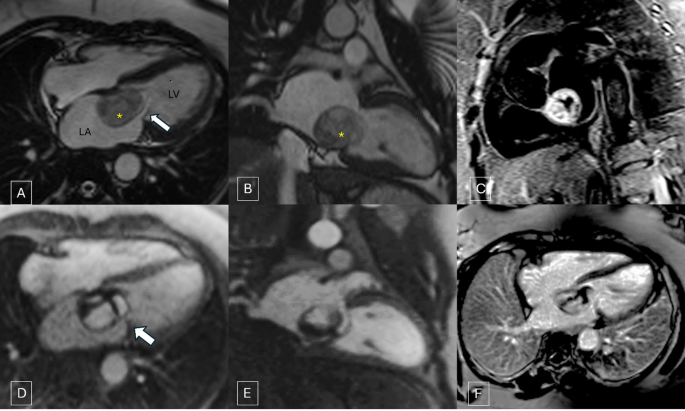

A middle-aged woman presenting with acute ischemic stroke was detected to have a complex cystic mass in the left atrium on echocardiography. Further evaluation with cardiac magnetic resonance imaging narrowed a differential diagnosis to hemangioma, hemangioendothelioma, sarcoma, hydatid cysts, bronchogenic cysts, and cystic variant of cardiac myxoma. CTA demonstrated arterial supply from the left circumflex artery supplying the lesion. Following surgical excision, histopathology analysis suggested a cystic cardiac myxoma with secondary degeneration.
Conclusion
Cystic masses in the heart are challenging to diagnose due to similar imaging characteristics, and misdiagnosis may lead to further major downstream complications such as stroke, hemorrhage, and hemodynamic alterations causing syncope. Therefore, surgical excision of a cystic cardiac mass is justified to establish a definitive histopathological diagnosis and prevent further downstream complications. We hereby report a rare case of cystic cardiac myxoma in the left atrium showing intense progressive enhancement in CMR and CTA in a middle-aged woman presenting with acute stroke. This case highlights an exceedingly rare variant of cystic cardiac myxoma.
Background
Cardiac myxomas are the most common primary benign tumors of the heart usually seen as solid round-to-oval masses attached to interatrial septum (IAS) and arising from mesenchymal cells of septal endocardium. It is composed of myxoid matrix, which leads to its gelatinous appearance [1]. Cardiac myxomas are seen in 0.03% of the general population with an estimated annual incidence of 0.5–1 case per million individuals [2, 3]. Myxomas occurring in left-sided heart chambers can embolize to cerebral and peripheral circulation, whereas right-sided myxomas can lead to pulmonary embolism [4]. The variable composition of myxoid tissue, fibrous component, blood, and hemorrhagic breakdown products within myxomas results in significant variability of the signal characteristics on cardiac magnetic resonance imaging (CMR). Myxomas usually show mild heterogenous enhancement on contrast administration with area of enhancement corresponding to inflammation and rich myxomatous element [5, 6]. Cystic myxomas in left atrium (LA) are exceedingly rare with only a few case reports described in the literature 7,8,9,10]. The differential diagnosis of cystic masses in LA can be hydatid cyst, IAS aneurysm, coronary artery aneurysm, intramural hematoma of LA, sarcomas, hemangiomas, hemangioendotheliomas, bronchogenic cysts and rarely myxomas 11,12,13,14,15].
Case presentation

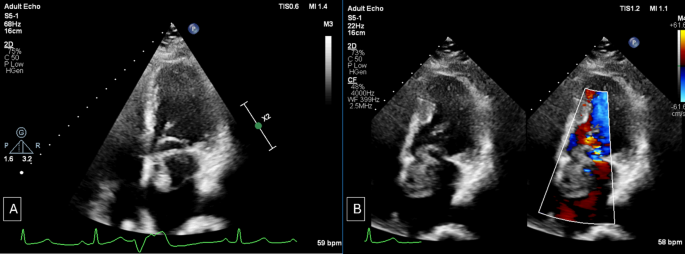

A 53-year-old woman who presented to emergency with right-sided hemiparesis underwent non-contrast computed tomography brain which showed an acute infarct in the left thalamic and gangliocapsular region. She was administered recombinant tissue plasminogen activator. She did not have any relevant past medical or surgical history. Therefore, as part of screening workup she underwent a transthoracic echocardiography which detected a complex cystic mass in the LA attached to the IAS dynamically protruding across mitral annulus into left ventricle (LV) which led to suspicion of a hydatid cyst (Fig. 1). Subsequently, a contrast-enhanced CMR was done which showed a well-defined pedunculated solid cystic mass measuring approximately 4 cm × 3 cm in LA, attached to the inferior aspect of IAS and prolapsing through mitral valve during diastole causing dynamic transmitral inflow stenosis (Supplementary clip 1). The cystic areas within mass appeared hyperintense on T2-weighted images (T2WI) and hypointense on T1-weighted images (T1WI), whereas solid component appeared hypointense on both T1WI and T2WI. On the first pass perfusion, intense progressive enhancement was seen within the cystic part of the lesion immediately following the left-sided cardiac chamber enhancement. The solid component did not show any discernible enhancement (Supplementary clip 2). On late gadolinium enhancement (LGE) sequences, persistent enhancement of cystic spaces was seen without any enhancement in solid component (Fig. 2). High inversion time (TI) images did not show any thrombus. Biventricular functions were normal with no abnormal signal intensity seen in the myocardium. On the basis of CMR, possible differential diagnosis of hemangioma, hemangioendothelioma and cystic variant of myxoma was given.

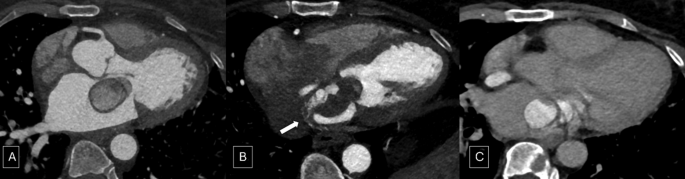

Patient was planned for surgical excision of the mass, and a cardiac CTA was done for evaluation of coronary artery disease. CTA confirmed the findings of CMR and additionally showed multiple arteries from branches of the left circumflex artery. Progressive enhancement of cystic spaces was seen on CTA with non-enhancing solid components. No calcification was seen. No obstructive coronary artery disease was noted (Fig. 3).
The patient underwent surgical excision of the mass despite the high risk of thromboembolism. Histopathology of excised specimen showed tumor composed of neoplastic cells arranged in cords and nests in a branching pseudo-vascular pattern. Higher-magnification images revealed the presence of polygonal-to-stellate-shaped lepidic cells in myxoid background. These features were compatible with diagnosis of cardiac myxoma with secondary degeneration (Fig. 4). The patient was stable in postoperative period and was discharged one week later. She was advised to take oral antiplatelet therapy (Aspirin, 325 mg once daily). The patient did not report any recurrence of symptoms and underwent a follow-up echocardiography after 1 month of surgery, which ruled out any residual or recurrent lesion.
Conclusion
Cardiac myxomas are the most common primary cardiac neoplasms presenting as an endocardial mass occupying cardiac chambers. In majority of cases, myxomas are seen attached to the IAS and less frequently seen in ventricles. Around 75% of myxomas are seen in left atrium and 20% seen in right atrium. Cardiac myxomas usually present with obstructive constitutional symptoms such as fever, chills and lethargy, and in around 20% patients, cardiac myxomas produce no symptoms. However, in 30–40% patients, cardiac myxomas present with embolic phenomenon with clinical manifestation according to the location of the mass, the left or right side of heart. Left-sided myxomas may present with fatal cardiovascular embolic events such as stroke and coronary embolization or with complete obstruction of mitral or aortic valve. It is imperative that a diagnosis of cardiac myxoma be made using advanced imaging techniques such as echocardiography, CTA or CMR [2, 3].
Typically, cardiac myxomas present as solid mass lesions with heterogeneous enhancement on contrast administration. Cardiac myxomas can have a heterogenous appearance reflecting hemorrhage, necrosis, fibrosis or calcification and pose challenges in diagnosis and treatment. An intracardiac cystic mass with heterogenous post-contrast enhancement can have a wide list of differential diagnosis such as hydatid cyst, IAS aneurysm, coronary artery aneurysm, intramural hematoma of LA, sarcomas, hemangiomas, hemangioendotheliomas, bronchogenic cysts and rarely myxomas. It is difficult to establish a firm diagnosis due to overlapping imaging features; hence, histopathological examination is the way forward for further management and prognosis of the patient. It is necessary to adapt an aggressive diagnostic approach in case of a cystic cardiac mass to unmask stealth malignant lesions such as sarcomas which can present as benign appearing mass lesions on imaging 11,12,13,14,15].
This case illustrates a rare cystic form of atrial myxoma and highlights the importance of considering this condition when diagnosing apparently cystic intracardiac mass. It underscores the significance of CMR in evaluating these masses and the value of imaging techniques in distinguishing myxomas from other potential causes of intracardiac masses. Due to their structural similarities, accurately diagnosing LA cystic masses using preoperative imaging is challenging. Failure to remove these masses may lead to major complications such as stroke, rupture, and hemodynamic alterations. Therefore, surgical excision of a cystic LA mass is justified to establish a definitive diagnosis and prevent potential complications.
Availability of data and materials
Data supporting the study results can be provided followed by request sent to the corresponding author’s e-mail.
Abbreviations
- CMR:
-
Cardiac magnetic resonance imaging
- CTA:
-
Computed tomography angiography
- IAS:
-
Interatrial septum
- LA:
-
Left atrium
- LGE:
-
Late gadolinium enhancement
- LV:
-
Left ventricle
- T1WI:
-
T1-weighted imaging
- T2WI:
-
T2-weighted imaging
References
Shapiro LM (2001) Cardiac tumours: diagnosis and management. Heart 85:218–222
Grebenc ML, Rosado de Christenson ML, Burke AP, Green CE, Galvin JR (2000) Primary cardiac and pericardial neoplasms: radiologic-pathologic correlation. Radiographics 20:1073–103; quiz 1110
Keeling IM, Oberwalder P, Anelli-Monti M, Schuchlenz H, Demel U, Tilz GP, Rehak P, Rigler B (2002) Cardiac myxomas: 24 years of experience in 49 patients. Eur J Cardiothorac Surg 22:971–977
Liu Y, Wang J, Guo L et al (2020) Risk factors of embolism for the cardiac myxoma patients: a systematic review and metanalysis. BMC Cardiovasc Disord 20:348
Grebenc ML, Rosado-de-Christenson ML, Green CE, Burke AP, Galvin JR (2002) Cardiac myxoma: imaging features in 83 patients. Radiographics 22:673–689
Sparrow PJ, Kurian JB, Jones TR, Sivananthan MU (2005) MR imaging of cardiac tumors. Radiographics 25:1255–1276
Futami S, Hieda M, Fukata M, Shiose A (2023) A rare case of cardiac myxoma with light bulb–like cystic morphology: a case report. Eur Heart J Case Rep 7(8):ytad331
Singhal A, Gupta PN, Mani S, Kumar R (2017) A rare cystic degeneration of myxoma. IHJ Cardiovasc Case Rep (CVCR) 1(1):39–41
Park KJ, Woo JS, Park JY (2013) Left atrial myxoma presenting with unusual cystic form. Korean J Thorac Cardiovasc Surg 46(5):362–364
Liao JM, Nasseri F, Nachiappan AC, Kuban J, Cheong BY (2013) Left atrial myxoma presenting as a cystic mass. Tex Heart Inst J 40(3):358–359
Zhang S, Wang J, Song F, Yang F, Li F, Liu S, Ma J, Zhang H, Ma X (2023) Case report: Left atrial myxoma with morphology of cavernous hemangioma supplied by the right coronary artery. Front Cardiovasc Med 1(10):1207339
Kim E, Choi S-W, Min D, Kim SH et al (2017) A case of a resected benign myxoma-like hemorrhagic cyst, which later recurred as undifferentiated pleomorphic sarcoma in the left atrium. Medicine 96(16):e6353
Etschmann B, Krombach G, Böning A, Gattenlöhner S (2012) Pleomorphic high-grade sarcoma of the heart mimicking cardiac myxoma. BMJ Case Rep 2012:bcr1220115277
Kim JT, Baek WK, Kim KH et al (2003) A primary cardiac sarcoma preoperatively presented as a benign left atrial myxoma. Yonsei Med J 44:530–533
Park J, Song JM, Shin E, Jung SH, Kim DH, Kang DH et al (2011) Cystic cardiac mass in the left atrium. Circulation 123(10):e368–e369
